User Guide of DumboFab Video Converter Ultimate
Go to Windows →

To begin the conversion, you need to add media files to DumboFab Video Converter Ultimate for Mac firstly. And there are different methods to add the media files.

Method 1. Add Media Files by Buttons.

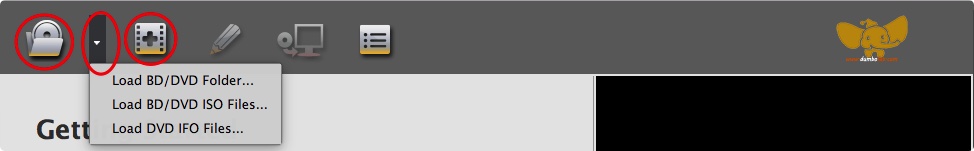

Click button to import video/audio files or Load Disc button to import Blu-ray and DVD files.

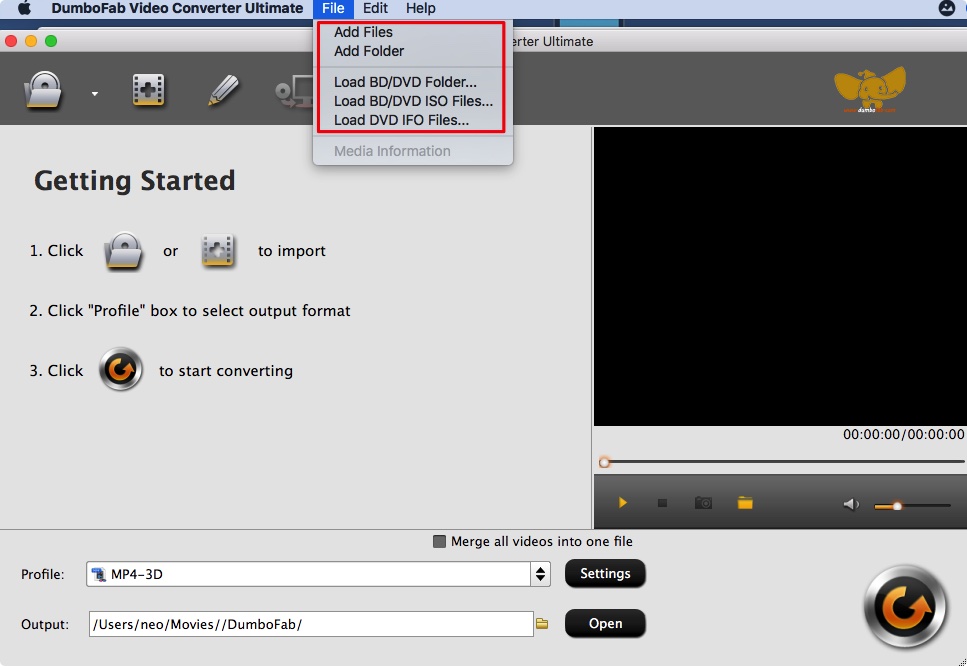

Tips: You can also add all the files from one folder by moving mouse cursor to the menu File > Add From Folder.

Method 2. Add Media Files by Drag and Drop

Drag the media files you want to convert from the File Explorer window and drop the files into the conversion queue of DumboFab Video Converter Ultimate for Mac. Besides directly dragginig video and audio files, you can also directly drop Blu-ray/DVD Folder and ISO Image files.

① "Common Video Profile"

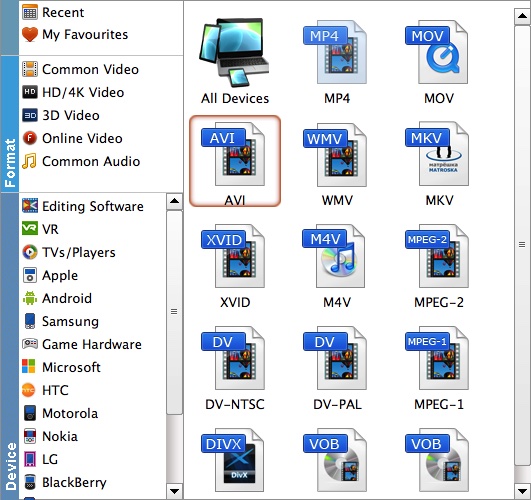

Clicking the Format bar, you can choose output format from the format list or customize which formats to be shown on the list. As you see, all regular video like MP4, MOV, MKV, WMV, AVI, FLV, with H.264/MPEG-4/HEVC codecs are provided. Moreover, there are available 3D outputs, 4K outputs and HD outputs, etc.

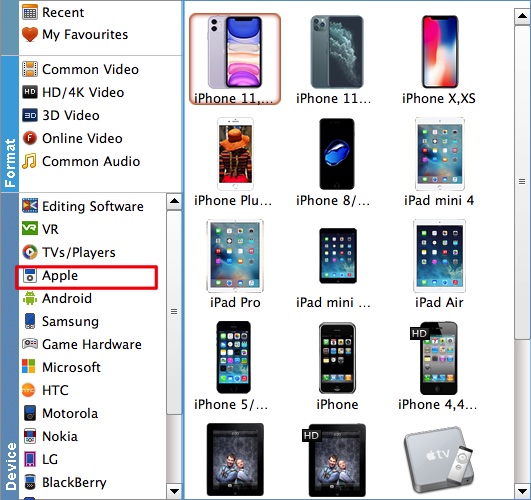

② "Device Profile"

If you want to convert videos for playback on iPhone, iPad, Android, smart TVs, game console, etc. you can simply browse to find device and select it as the output format to get videos with optimized settings.

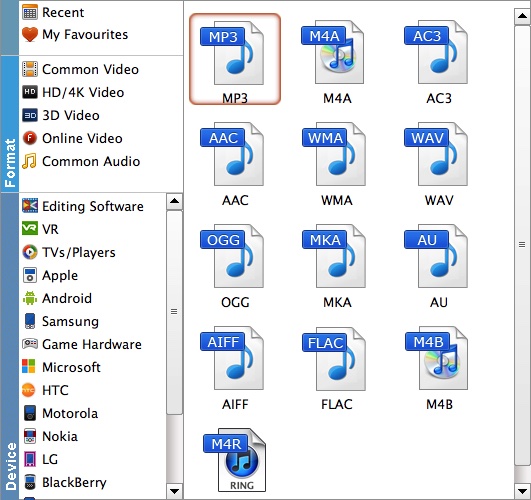

③ "Common Audio Profile"

Extract background music from your video to MP3, M4A, AAC and more.

④ "Web Video Profile"

Convert your videos to MP4, MPEG4 or FLV for YouTube, Facebook and other social networks.

Options:

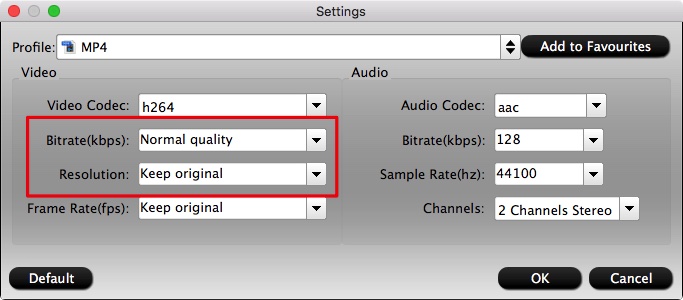

1. Advanced Settings: To cover your higher needs, you can set all the video and audio parameters regarding the output video at the Advanced Settings, and deeply customize the output video with the built-in video editor.

⑤ "3D Video"

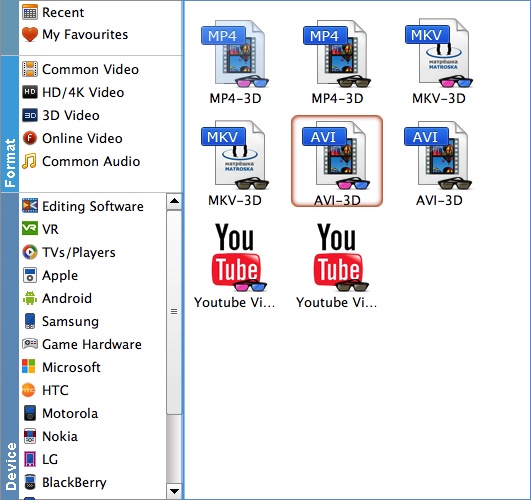

DumboFab Video Converter Ultimate can help you create your own 3D videos from common videos. Click the Format bar, you can choose output format from the 3D Video format list or customize which formats to be shown on the list.

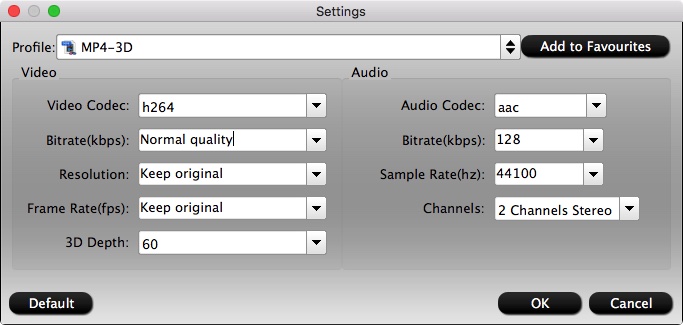

If you like, you could adjust video codec, bitrate, frame rate, etc to get better video quality in saved 3D video by clicking Settings button. Meanwhile, you could choose 3D anaglyph and Depth in Profile Settings to avoid images misaligned.

⑤ "Multi-track output"

DumboFab Video Converter Ultimate also supports multi-track outputs. There are four multi-track output formats available for you to choose from – Lossless/encoded Multi-track MKV, Multi-track MP4, Multi-track MOV and Multi-track Interlaced DV PAL Video (*.avi).

Kindly Note: If you are backing up a Blu-ray disc to multi-track formats, please make sure the storage place is around or above 30GB.

※ This video converter ultimate lets you upscale 2K/1080P videos to 4K and downscale 4k to lower resolution at fast speed.

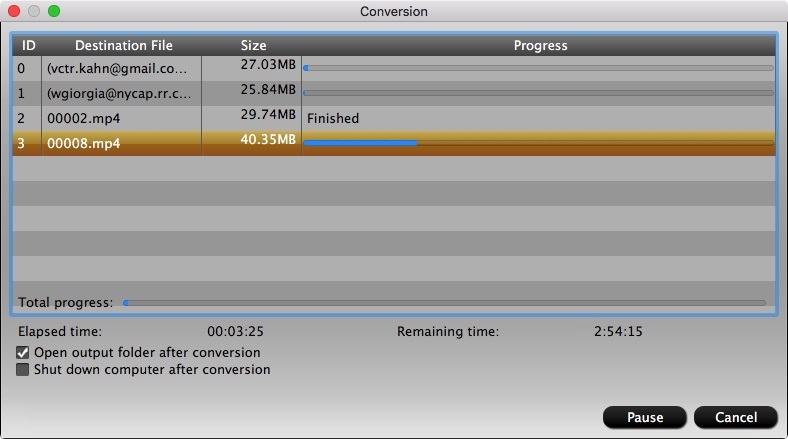

Finally, just click the Convert button in the lower-right corner to start the conversion. you can go to Conversion window to find the conversion process.

※ Other useful tips:

① If you want to put all the imported clips together, and click "Merge into one"to combine them into one.

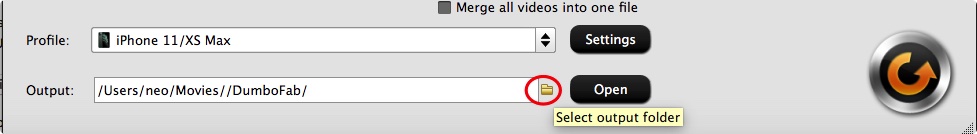

② Press "Browse" and change the location where you want to save the converted file.

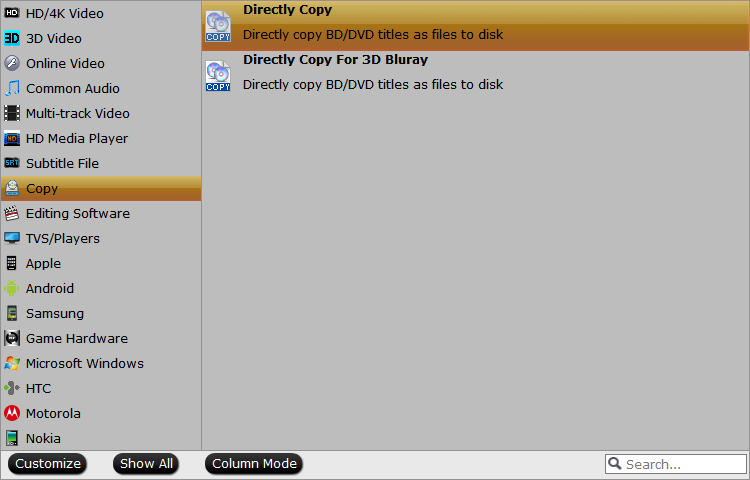

Copy Main Movie: By choosing Copy > Directly Copy, you are ale to copy the selected movie file in its original format without quality loss. When directly copy a Blu-ray (DVD) movie, you will get .m2ts (.vob) as output. Finally, click Convert button to start the copy process.

Cppy the Entire Disc: If you want to preserve Blu-ray’s original file structure without changing anything, you needn’t set here, just use Copy the entire disc feature. Once click the Copy the entire disc button, the program will directly copy the whole disc immediately.

Trim and Cut Videos Easily.

By default, the icon is grayed out. To activate the Edit menu, you have to select an item first. When a video file is selected, you can click the Edit icon on the tool bar of main interface to edit selected file.

On the "Video Editor" Window, switch to Trim tab and follow any of the methods below to cut unwanted segments:

1. Drag the control sliders to include the segment you want to remain.

2. Click the left square bracket to set start point, and click the right square to set end point when previewing the video.

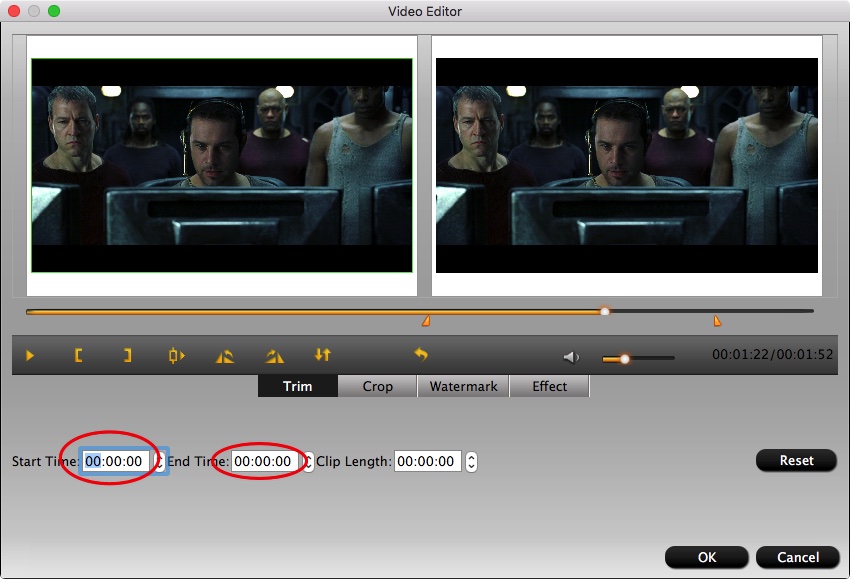

3. Input specific values to "Start" and "End" box.

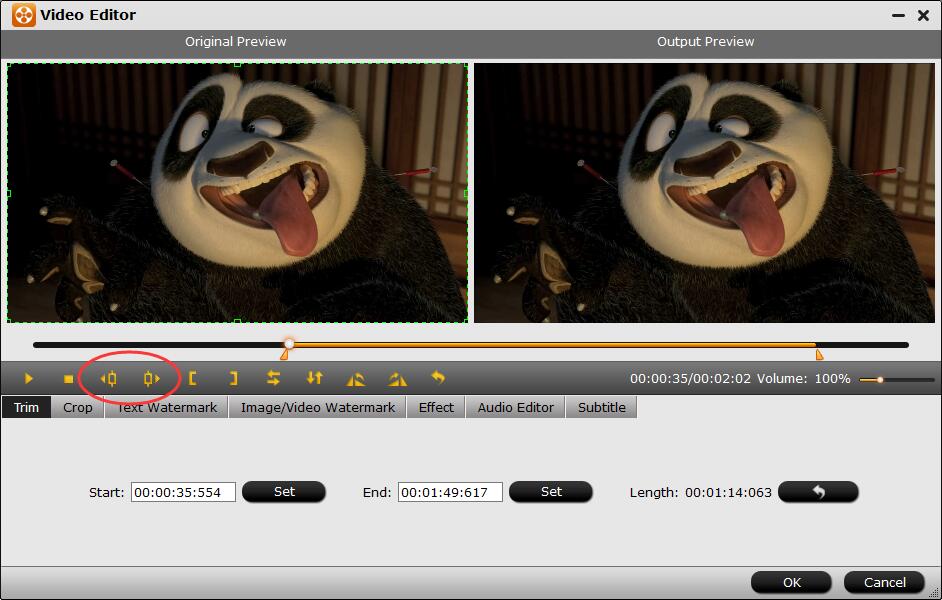

4. Trim frame by frame - DumboFab Video Converter offers "Previous Frame" and "Next Frame" options for users to select frames and trim accurately.

To crop video, you just simply switch to Trim tab. The Crop facility enables users to get rid of the black edges and unwanted area of the image.

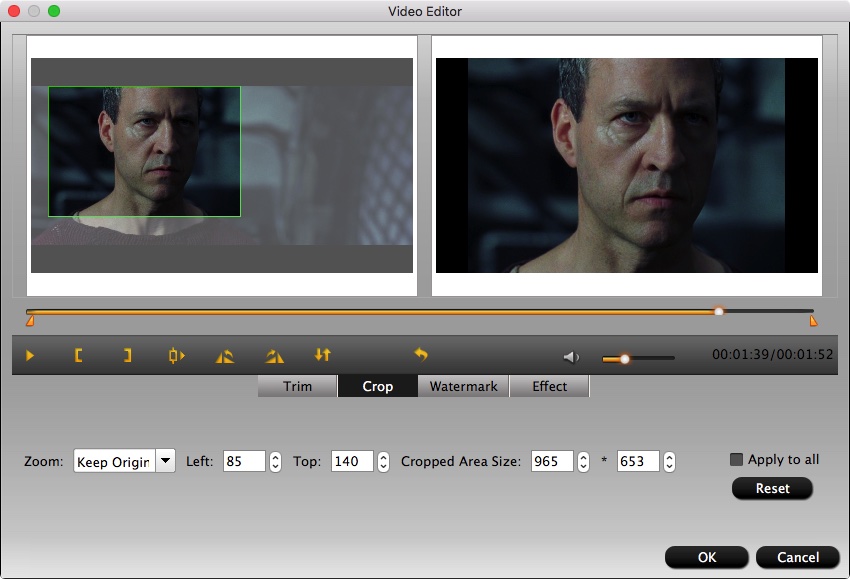

A: Crop video by dragging and dropping the crop frame

Simply move your mouse cursor to drag and adjust the green frame to desired position.

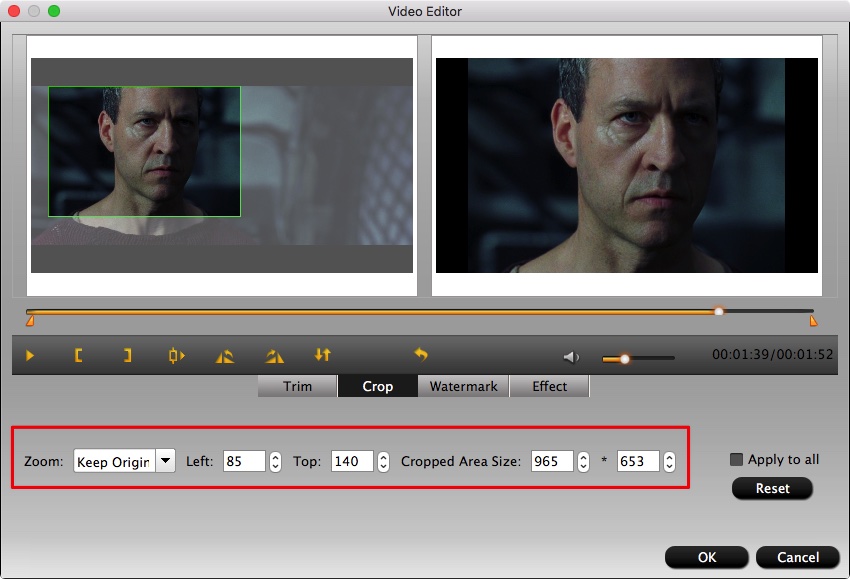

B: Crop video by setting values

There are "Simple Mode" and "Advanced Mode" under Crop feature. In "Simple Mode", you can customize values in the box of "Left","Top" and "Crop Size" to make your crop decision.

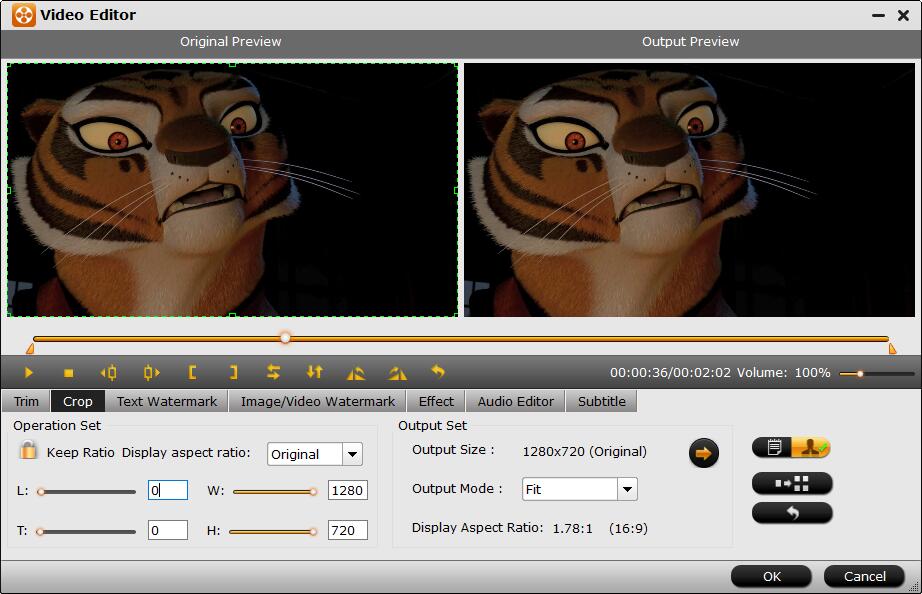

Under Advanced Mode, there are four value fields: Left, Top, Width and Height. You can either type in specific values to the fields or adjust sliders to crop the source file.

Keep original aspect ratio and cropped aspect ratio

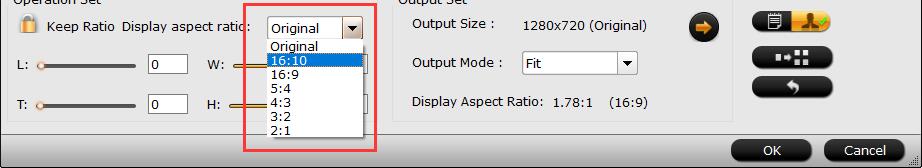

To keep original aspect ratio, users need make sure the "Display aspect ratio” and the 'Size (pix)" in "Settings" option are all set as "Original". If you want to keep the cropped aspect ratio, DumboFab software offers several aspect ratios for you to choose from, including 16:10, 16:9, 5:4, 4:3, 3:2, and 2:1.

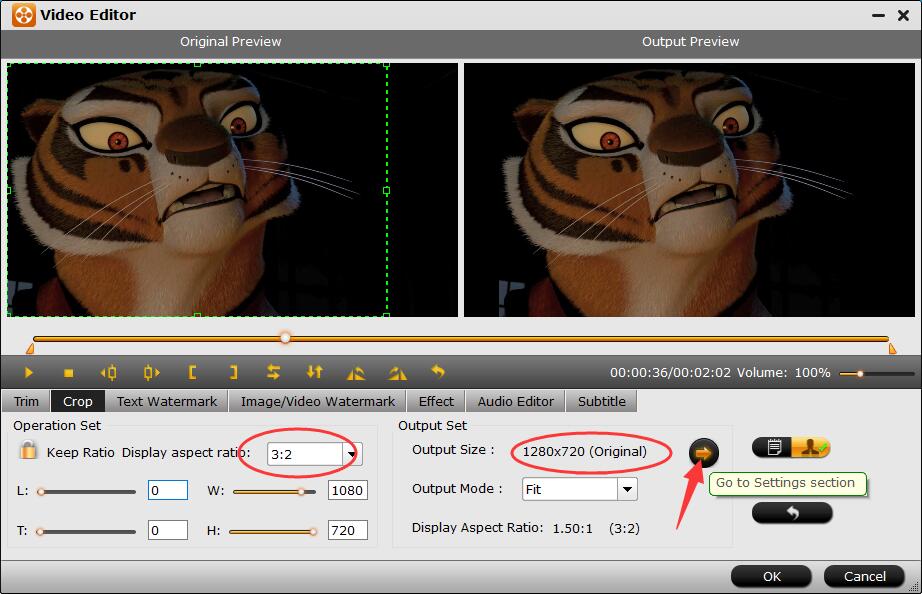

Once you selected a "Display aspect ratio", the "green crop frame" will keep this ratio to crop video and you are able to preview the final effect in real time. If you want to keep the same aspect ratio in your final output files, do remember to set the Video "Size (pix)" in "Settings" section as the same ratio as display aspect ratio. For example, if you want to export a file with "3:2" aspect ratio, firstly, you choose "3:2" in "Display aspect ratio", and then go to "Settings" section to adjust the Video "Size(pix)" as 720x480 or 1440x960. After finished, click "OK" to confirm.

Under Subtitle tab, check Enable, and then you can add *.srt or *.ass/*.ssa subtitle-files to the video as hard subtitles.

DumboFab Video Converter allow users to add text, image and video watermark to stamp your videos with your name or other indentifying marks.

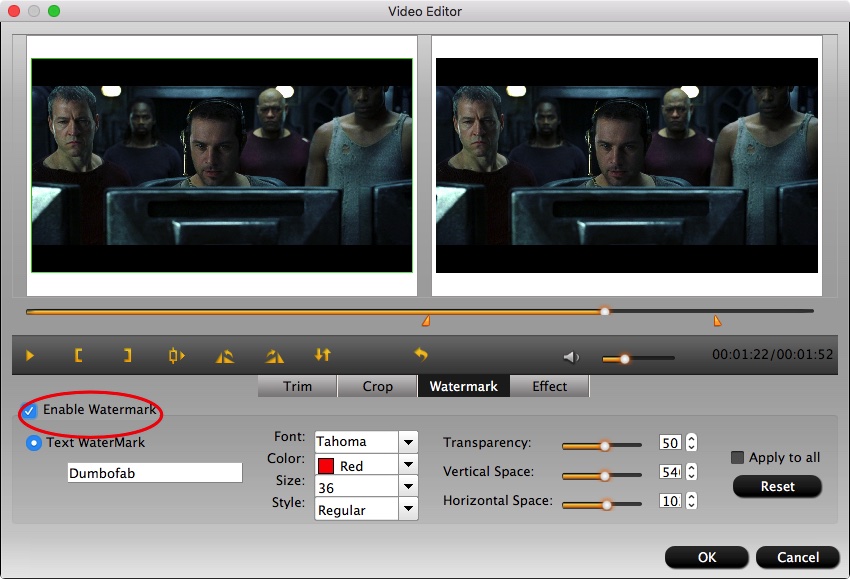

Under Text Watermark tab, check Enable, and then you can create a text watermark to personalize your video. Type whatever text you want in the blank input field next to it. You can also adjust the font, transparency, vertical and horizontal position of your watermark.

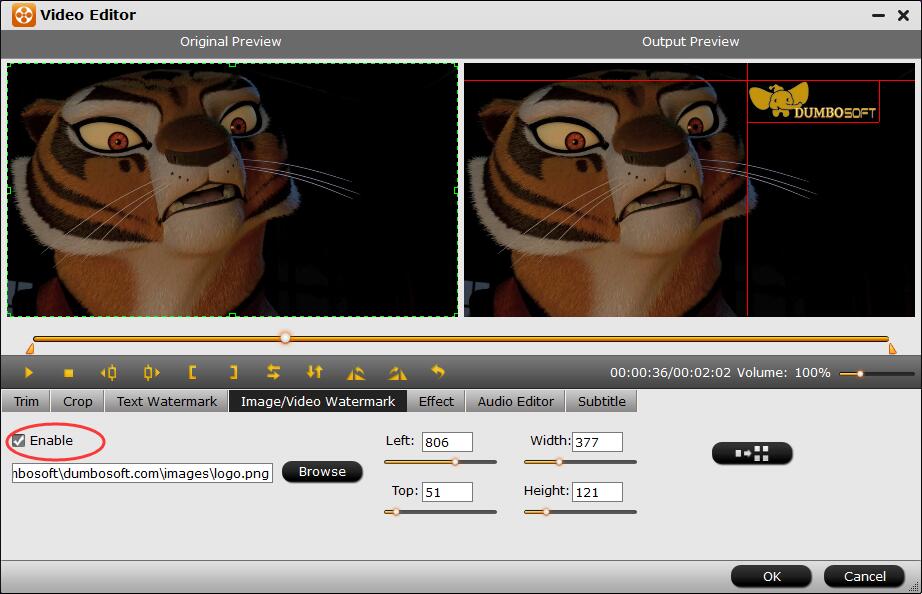

Under Image/Video Watermark tab, check Enable, and then add images or videos as watermark onto selected video file. The location can also be set by dragging on the preview screen.

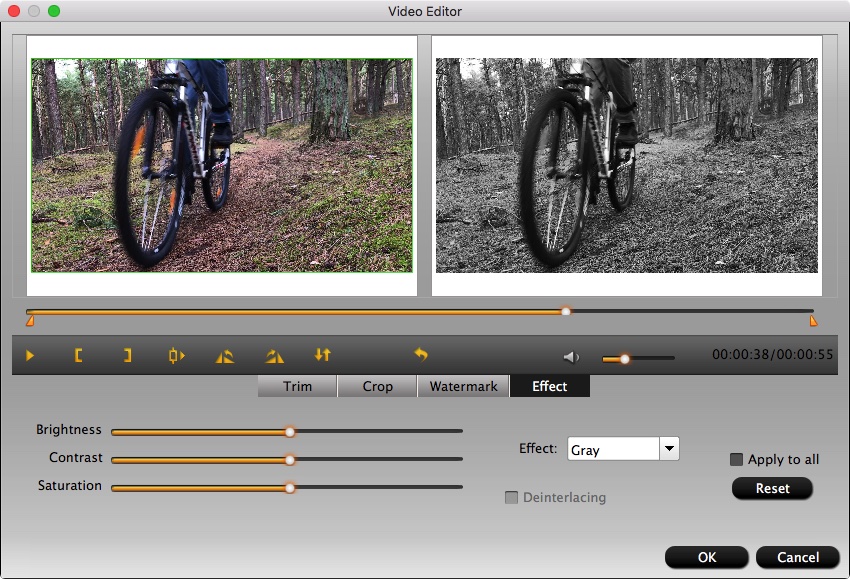

Under Effect tab, you can add special effects like Simple Gauss Blur, Flip Color, Invert, Aged Film to your source video. In Color Control section, you can correct color by adjusting brightness, contrast, and saturation. You can also tick off "Deinterlacing" to keep good image quality.

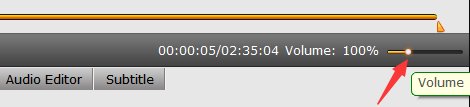

You can adjust the file volume by moving the slider.

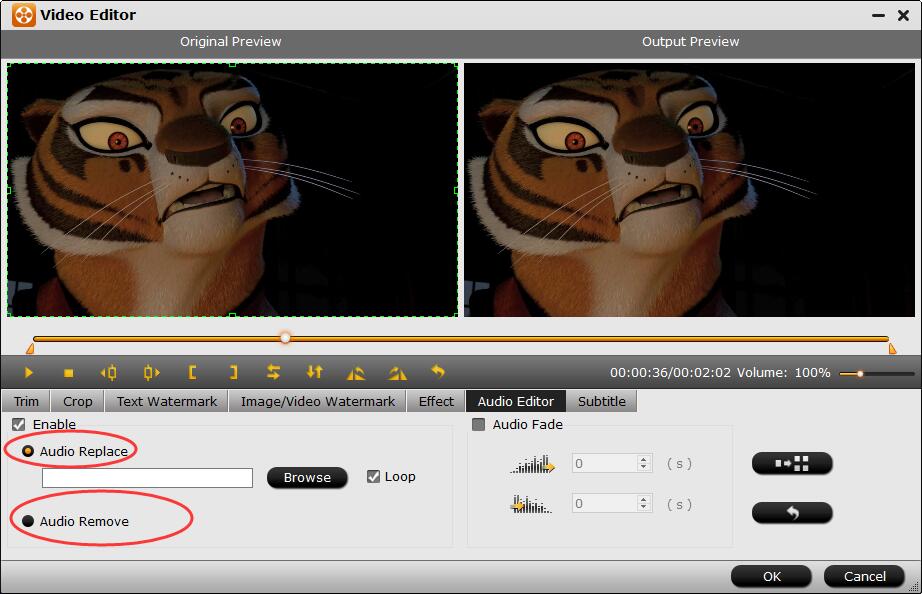

Under Audio Editor tab, check Enable, and then you can either replace/remove original audio, or set audio fade in/out effects.

There're flip horizontal and flip vertical, anticlockwise and clockwise 4 options for you to rotate the video.

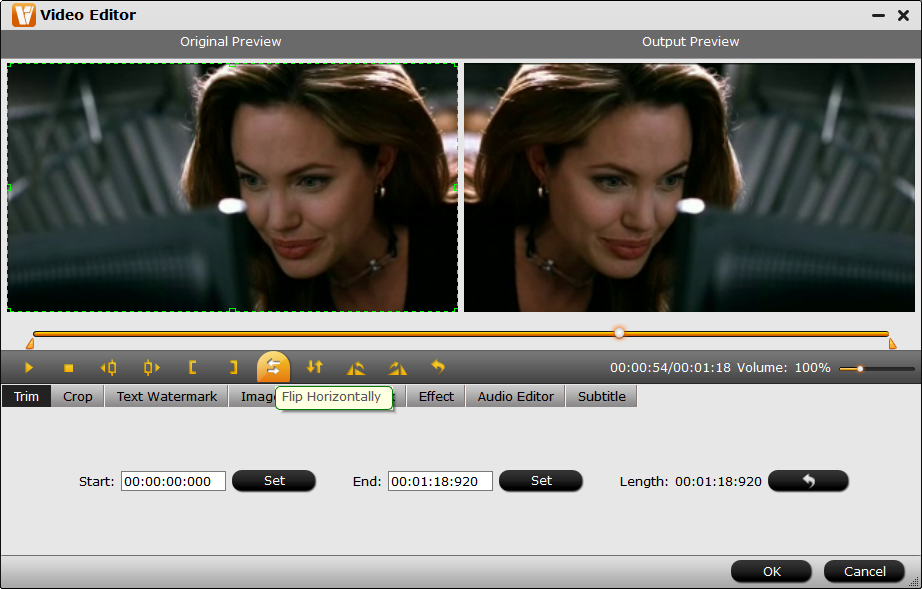

Flip Horizontally: Click to flip the image horizontally.

Flip Vertical: Click to flip the image vertically.

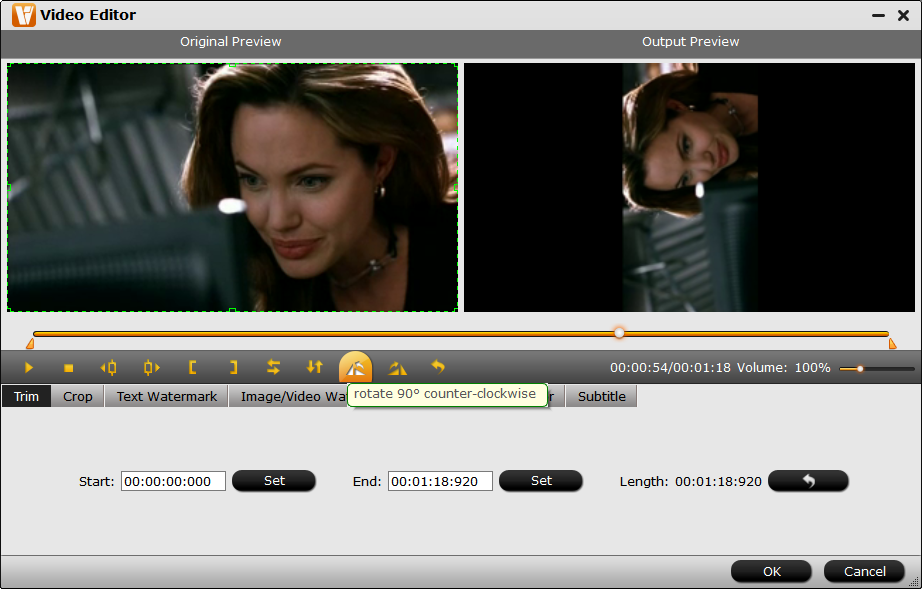

Rotate conunter-clockwise: Click to rotate the image 90°towards left.

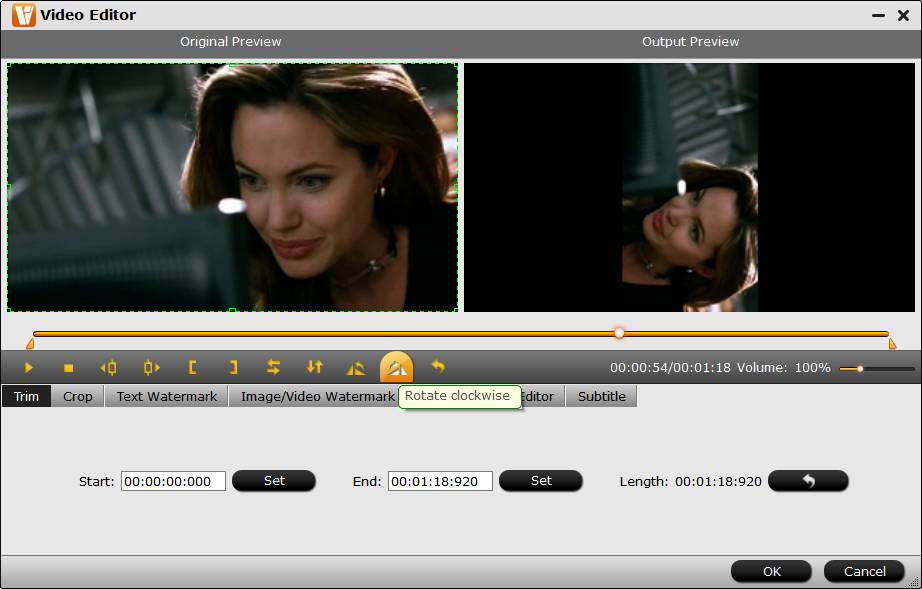

Rotate clockwise: Click to rotate the image 90°towards right.

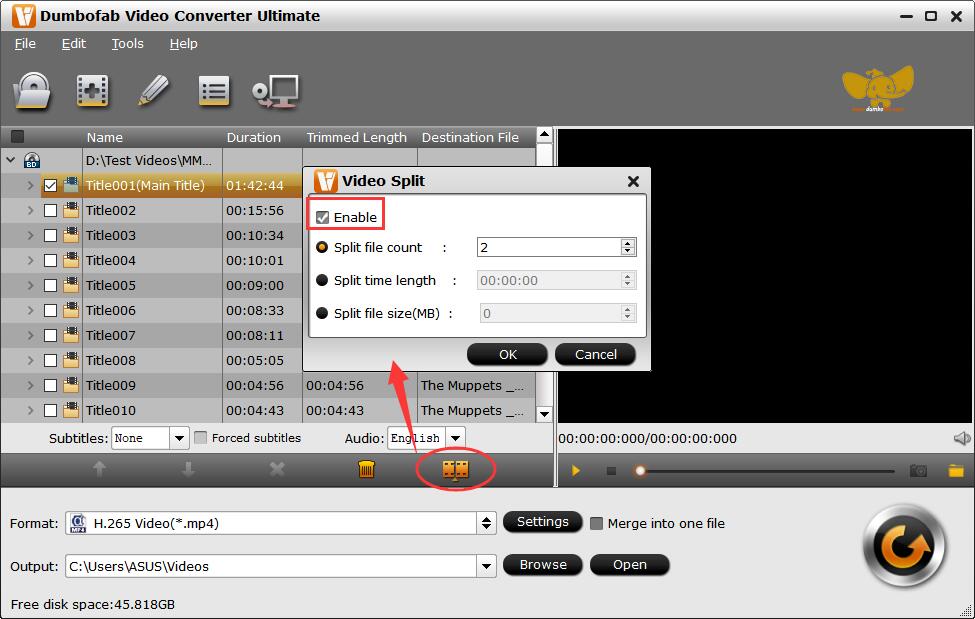

By clicking the Split button under file list, or choose Split from "Edit" menu, you can launch the "Video Split" window. Checking "Enable" to enable it, and then you can split the file by file count, time length, or file size.

If you want to put all the imported clips together, please tick off "Merge into one" to combine them into one.
